उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पत्ति का स्थान:: | चीन (महाद्वीप) | इंजन मॉडल: | सीआर4100क्यू/25 |
|---|---|---|---|
| प्राइम पावर (किलोवाट): | 20 | आवर्तित्र: | स्टैमफोर्ड / मीकल्ट / कॉपी स्टैमफोर्ड |
| उत्पादन का प्रकार:: | एसी थ्री फेज़ | जेनसेट आकार (एल*डब्ल्यू*एच/मिमी): | 1650x730x1250 |
| वजन(किलो): | 5400 | प्रारंभ विधि:: | ऑटो स्टार्ट/कुंजी स्टार्ट |
| प्रमुखता देना: | gas turbine generator set,gas engine generator |
||

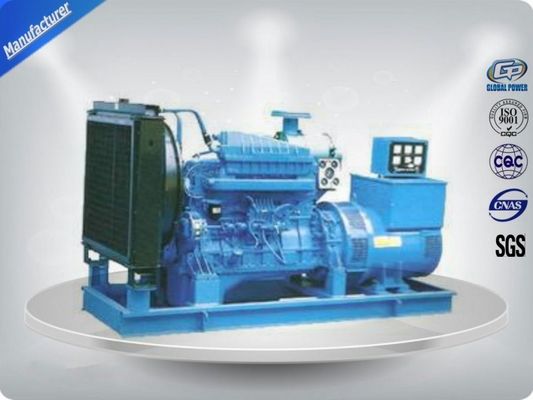

20kw Gas Generator Set
General data
|
Engine brand |
Weichai |
Alternator brand |
Stamford / copy stamford |
|
Engine model |
CR4100Q/25 |
Alternator model |
PI 144E/20 |
|
Controller |
HGM410 |
Prime power |
20kw |
|
Dimension |
1350x750x1170 |
Protection grade |
IP23 |
|
Cooling method |
water cooled |
Excitation mehtod |
brushless |
|
Start method |
auto start/key start |
Insulation grade |
H |

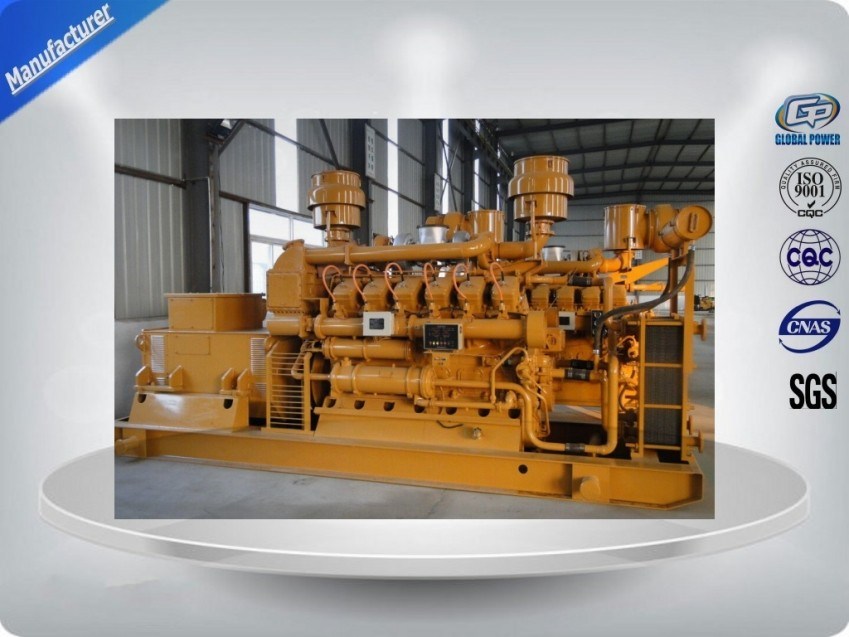

Our Picture :
Our Service:
Warranty and Maintenance:
Nature gas generator feature:
1) Our engineer will install the nature gas generator on your site
2) Gas consumption: less than 0.28cbm/kWh
3) We supply you spare parts during the whole service life.
4) Nature gas generator powered by famous &good quality engine and alternator, such as Cummins, Deutz.
5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained
6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return
7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.
8) Nature gas generator coupled with brushless alternators of Leroy Somer /Stamford/ Marathon, etc.
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown when main power on, auto start when main power off.
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature
12) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system
