उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| इंजन ब्रांड:: | पर्किन्स | इंजन मॉडल: | 1103ए-33टीजी1 |
|---|---|---|---|
| आउटपुट पावर (किलोवाट): | 47 | ईंधन टैंक क्षमता (एल): | 120 |
| स्पीड गवर्निंग: | इलेक्ट्रॉनिक | शीतलन प्रणाली: | पानी ठंडा हुआ |
| नियंत्रण मॉड्यूल ब्रांड: | कॉमैप, स्मार्टजेन, डीपसी | जेनसेट नियंत्रक: | एचजीएम410 |
| पैकेट: | प्लास्टिक फोम या प्लाईवुड केस | ध्वनिरोधी प्रकार- आयाम (एल*डब्ल्यू*एच) (मिमी): | 2450*1050*1550 |
| प्रमुखता देना: | genset silent portable,मूक डीजल genset |
||
Widely Used Cummins / Perkins / Volvo Silent Diesel Engine Power Electric Generator 45kva
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel genset.
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Diesel Generator GPP36 (three phase)
|
Prime Power (kw/kva) |
36/45 |
|
Standby Power (kw/kva) |
40/50 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
65 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
1550*650*1080 |
|
Open Type-Weight (kg) |
780 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
2450*1050*1550 |
|
Soundproof Type-Weight (kg) |
1960 |
|
Fuel Tank Capacity(L) |
120 |
|
Continuous Running Time(hr.) |
8 |
Engine specifications
Engine
Main features:
l Six-cylinder, water-cooled, in-line diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 1103A-33TG1
|
Engine brand |
Perkins |
|
Output Power (kw) |
47 |
|
Cylinder No. & Config. |
3, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
17.25:1 |
|
Displacement (L) |
3.3 |
|
Bore X Stroke (mm) |
105*127 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
12V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
10.2 |
|
Fuel Consump. (g/kw·h) |
207.7 |
|
Oil Capacity (L) |
7.9 |

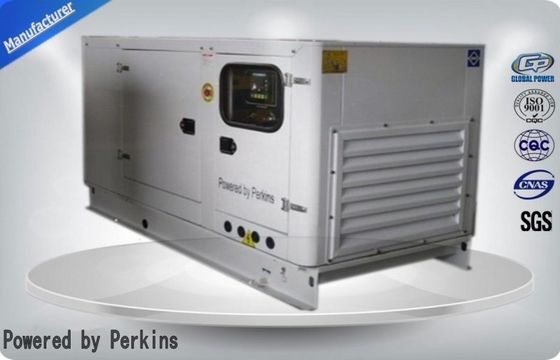

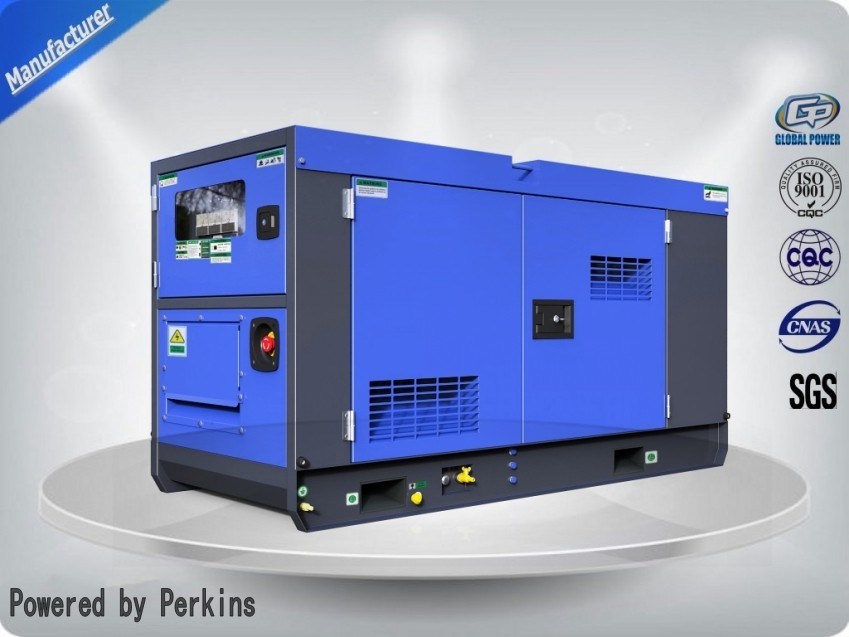

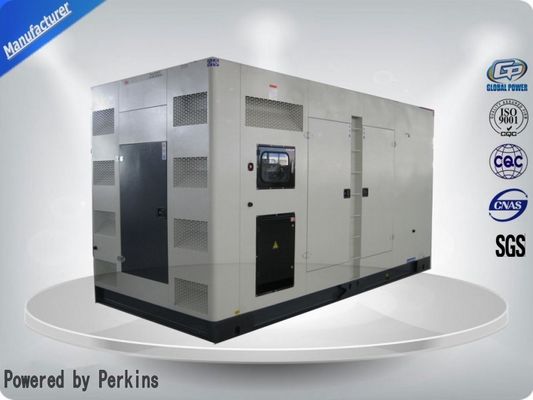

Product Picture:
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
