उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| इंजन ब्रांड:: | एमटीयू, कमिंस, पर्किन्स, वीएमएएन उपलब्ध | आउटपुट पावर (किलोवाट):: | 600 |
|---|---|---|---|
| अल्टरनेटर:: | स्टैमफोर्ड / मीकल्ट / कॉपी स्टैमफोर्ड | इंजन मॉडल:: | 12V2000G65 |
| रेटेड आवृत्ति (हर्ट्ज): | 50/60 हर्ट्ज | प्रकार:: | पात्र |
| चरण की संख्या: | 3 | आयाम एल*डब्ल्यू*एच/मिमी: | 4050*1700*2150 |
| वजन (किग्रा: | 6100 | आवर्तित्र: | एलवीआई 634बी/600 |
| प्रमुखता देना: | Canopy Generator Set,3 phase diesel generator |
||

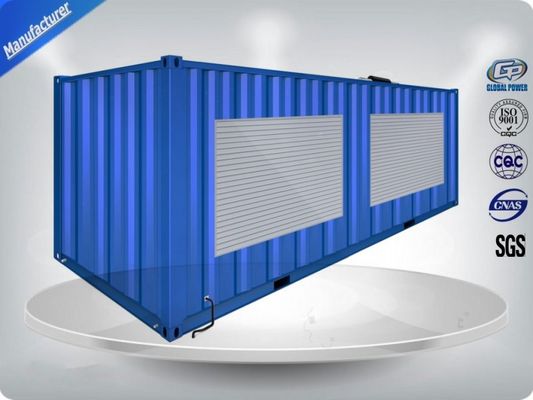

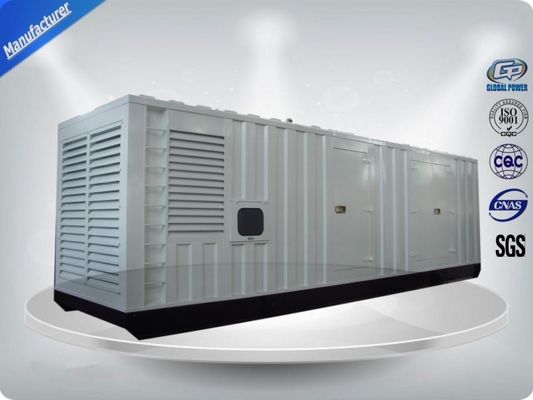

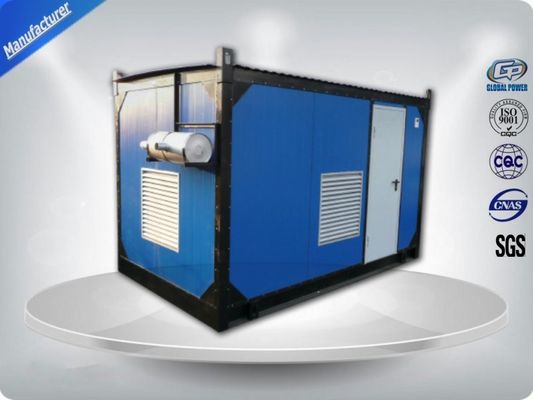

Container Type Silent Diesel Genset , Diesel Generator Set 600-750 Kw / Kva
Generator data
Diesel Generator GPM600 (three phase)
|
Prime Power (kw/kva) |
600/750 |
|
Standby Power (kw/kva) |
660/825 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
1083 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
4050*1700*2150 |
|
Open Type-Weight (kg) |
6100 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
/ |
|
Soundproof Type-Weight (kg) |
/ |
|
Fuel Tank Capacity(L) |
/ |
|
Continuous Running Time(hr.) |
6 |
Engine specifications
Engine
Main features:
l Twelve-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 12V2000G65
|
Engine brand |
MTU |
|
Output Power (kw) |
695 |
|
Cylinder No. & Config. |
12,in “V” |
|
Combustion System |
direct injection |
|
Compression Ratio |
16:1 |
|
Displacement (L) |
23.88 |
|
Bore X Stroke (mm) |
130*150 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic / ADEC |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
164 |
|
Fuel Consump. (g/kw·h) |
198 |
|
Oil Capacity (L) |
77 |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
