उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पत्ति का स्थान:: | चीन (महाद्वीप) | ब्रांड: | गहरा समुद्र |
|---|---|---|---|
| अल्टरनेटर आवृत्ति: | 50 हर्ट्ज / 60 हर्ट्ज | मॉडल संख्या:: | डीएसई4620 |
| पैनल कटआउट(एल*डब्ल्यू*एच/मिमी): | 118 मिमी x92 मिमी | नियंत्रक: | एचजीएम420/410 |
| कुल आयाम:: | 140 मिमी x 113 मिमी x 43 मिमी | ||
| प्रमुखता देना: | generator paralleling controller,generator speed controller |
||

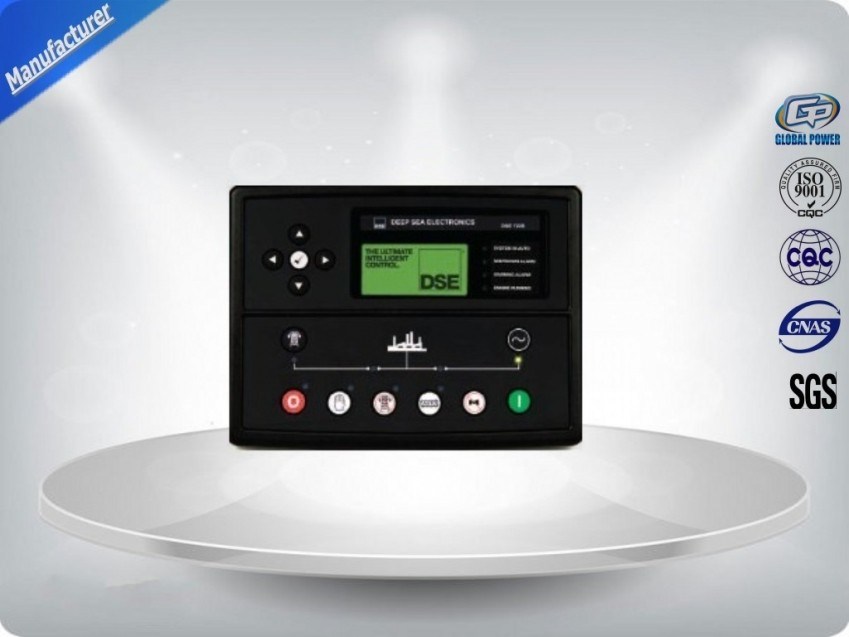

3 Phase 4 Wire Generator Paralleling Controller With Flame Retardant Abs Shell
Specifications :
| AUTO START CONTROL MODULES DSE4620 DEEP SEA ORIGINAL | |||
| DC SUPPLY | GENERATOR | ||
| CONTINUOUS VOLTAGE RATING | 8 V to 35 V Continuous | VOLTAGE RANGE |
15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) |
| CRANKING DROPOUTS | Able to survive 0 V for 50 mS | FREQUENCY RANGE | 3.5 Hz to 75 Hz |
| MAXIMUM OPERATING CURRENT | 85 mA at 12 V, 96 mA at 24 V | MAINS (UTILITY) DSE4620 ONLY | |
| MAXIMUM STANDBY CURRENT | 51 mA at 12 V, 47 mA at 24 V | VOLTAGE RANGE |
15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) |
| MAXIMUM SLEEP CURRENT | 35 mA at 12 V, 32 mA at 24 V | FREQUENCY RANGE | 3.5 Hz to 75 Hz |
| OUTPUTS | DIMENSIONS | ||
| OUTPUT A (FUEL) | 10 A short term, 5 A continuous,at supply voltage | OVERALL | 140 mm x 113 mm x 43 mm |
| OUTPUT B (START) | 10 A short term, 5 A continuous,at supply voltage | PANEL CUT-OUT | 118 mm x92 mm |
| AUXILIARY OUTPUTS C,D | 2 A DC at supply voltage | MAXIMUM PANEL THICKNESS | 8 mm |
Key Features:
• Ultimate size to feature ratio
• Automatically transfers between mains (utility) and generator (DSE4520 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are clearly displayed on thelargest back-lit icon display inits class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Compatible with a wide range of CAN engines
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress
