उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| इंजन ब्रांड: | पर्किन्स | इंजन मॉडल: | 1106A-70TAG3 |
|---|---|---|---|
| शीतलन प्रणाली: | पानी ठंडा हुआ | रेटेड वोल्टेज (वी): | 400/230 |
| इंजन की गति (आर/मिनट): | 1500 | रेटेड वर्तमान (ए): | 261 |
| स्पीड गवर्निंग: | इलेक्ट्रॉनिक | ईंधन टैंक क्षमता (एल): | 350 |
| प्रमुखता देना: | Trailer Genset,mobile generators |
||

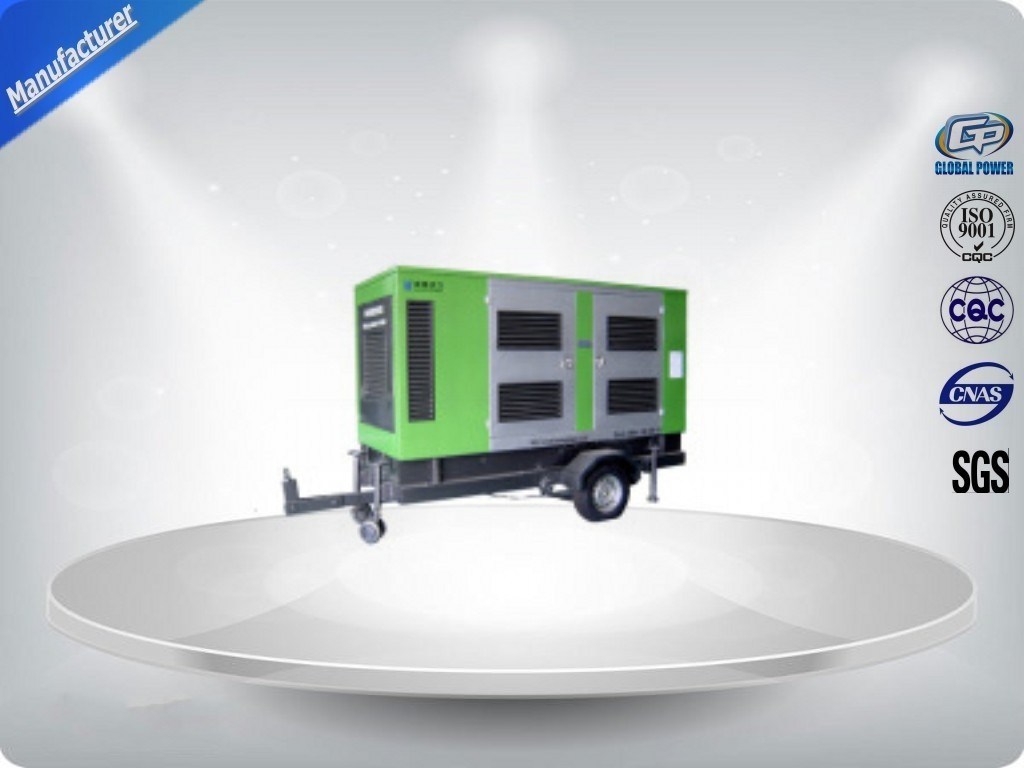

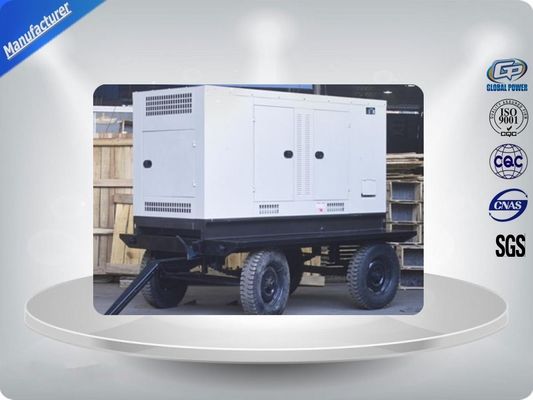

Rental Three Phase Trailer Mounted Generator 4 Wires Self - Excited Control System
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Trailer Feature:
Diesel Generator GPP144 (three phase)
Prime Power (kw/kva) | 144/180 |
Standby Power (kw/kva) | 160/200 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 261 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 24V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 2377*780*1350 |
Open Type-Weight (kg) | 1465 |
Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
Soundproof Type-Weight (kg) | 3865 |
Fuel Tank Capacity(L) | 350 |
Continuous Running Time(hr.) | 8 |
Engine Main features:
Engine Technical data
Model 1106A-70TAG3
Engine brand | Perkins |
Output Power (kw) | 172 |
Cylinder No. & Config. | 6, in-line |
Combustion System | direct injection |
Compression Ratio | 16:1 |
Displacement (L) | 7 |
Bore X Stroke (mm) | 105*135 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 24V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 21 |
Fuel Consump. (g/kw·h) | 222 |
Oil Capacity (L) | 16.5 |
Alternator Main features:
Alternator Technical data
Model UCI274G
Alternator brand | Stamford |
Rated Power (kw) | 144 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
