उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पैदल चलने का प्रकार: | हाथ का धक्का | Iऊंचाई बढ़ाना: | 2000-5600मिमी |
|---|---|---|---|
| उत्तेजना मोड: | एसी घूमने वाला एक्साइटर | प्रयोग: | सामान्य इकाइयाँ/आपातकालीन शक्ति |
| ठंडा करने की विधि: | पानी की मदद से ठंडा करने वाले उपकरण | उत्पादन: | एसी सिंगल/थ्री फेज़ |
| मस्त संचालित प्रणाली: | नियमावली | वोल्टेज: | 110V, 120V, 220V, 230V, 240V |
| संरक्षण ग्रेड: | आईपी21-आईपी23 | ||
| प्रमुखता देना: | telescopic light tower,trailer mounted light towers |
||

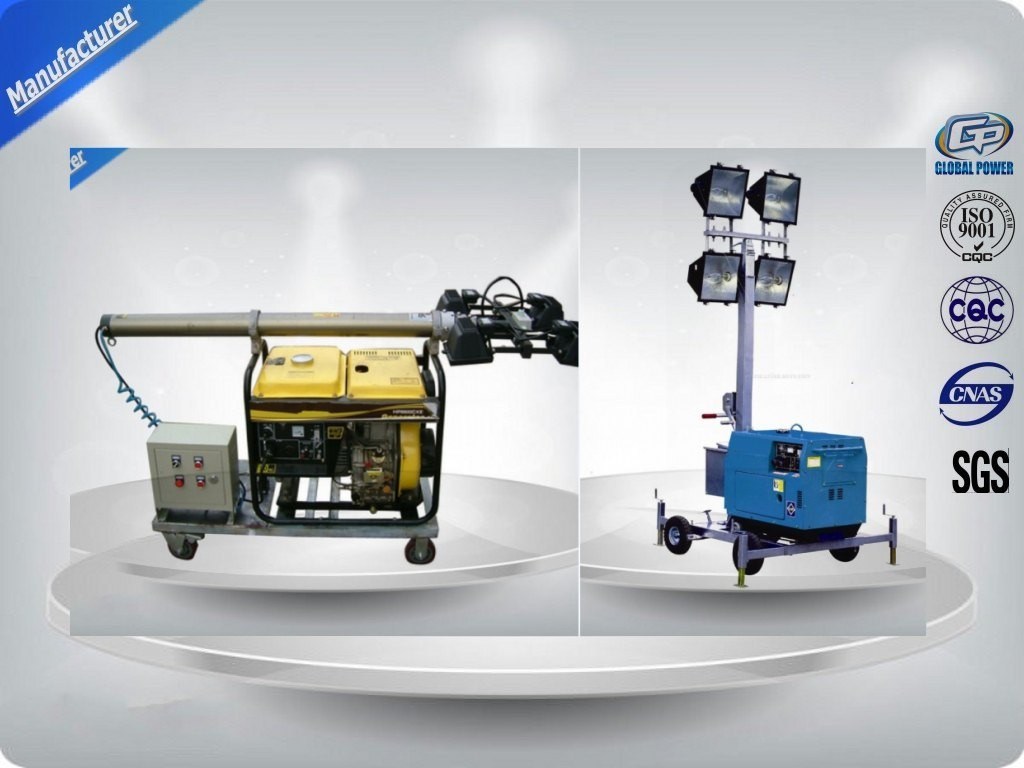

Construction Mobile Light Tower High Performance with LED lighting , Hand Push
Portable Light Tower is designed to provide light . These mobile light towers are used in a variety of applications from special events such as road night repair, disaster scene and general construction and concrete finishing. These lights can also be used as additional lighting.
Specification:
400W*2, 400W*4, 1000W*2, 1000W*4
Features:
Application:
For municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting
Specification
| Mast & Lamp | Max. extension of mast | 4.8m | 9m | 9m |
| Stages | 2 | 3 | 3 | |
| Total power of lamps | 4*400W | 4*1000W | 4*1000W | |
| Light capacity | 4*250000 lumen | 4*110000lumen | 4*110000lumen | |
| Lifetime of lamp | 2000 hours | 5000 hours | 5000 hours | |
| Generator | Model | END6500I | EN-10k | END-20C |
| Rated Power | 50Hz 4.2kw | 50Hz 6.0kw | 50Hz 20kw | |
| 60Hz 5.0kw | 60Hz 8.0kw | 60Hz 23kw | ||
| Standby Power | 50Hz 4.5kw | 50Hz 7.0kw | 50Hz 22kw | |
| 60Hz 5.5kw | 60Hz 9.0kw | 60Hz 25kw | ||
| Engine model | RP186FA | Kubota D1105-BG | with perkins engine 1003G | |
| Fuel tank capacity | 16L | 100L | 120L | |
| Prime fuel consumption | ≤1.65L/h | ≤2.0L/h | ≤5.25L/h | |
| Trailer | Stabilizer Support | 4*manual | 5*manual | 5*manual |
| Tire Size | Diameter=25cm | Diameter=25cm | Diameter=25cm | |
| Anti-wind capacity | ≤6 | ≤10 | ≤10 | |
| Dimension | Dimension(mm) | 1300*840*2600 | 4400*1200*1930 | 4400*1450*2100 |
| Net Weight | 350kg | 870kg | 1950kg |
Benefits of GLOBAL POWER mobile lighting towers:
1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection
