उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| इंजन ब्रांड:: | पर्किन्स | आउटपुट पावर (किलोवाट): | 287 |
|---|---|---|---|
| अल्टरनेटर ब्रांड:: | स्टैमफोर्ड / मीकल्ट / कॉपी स्टैमफोर्ड | इंजन मॉडल:: | 1606ए-ई93टीएजी5 |
| आवृत्ति (हर्ट्ज): | 50 | जेनरेटर प्रकार:: | खुला/तिरछा |
| रेटेड वर्तमान (ए): | 433 | ध्वनिरोधी प्रकार- आयाम (एल*डब्ल्यू*एच) (मिमी): | 3200*1150*1900 |
| पैकेट: | प्लास्टिक फोम या प्लाईवुड केस | ईंधन टैंक क्षमता (एल): | 600 |
| प्रमुखता देना: | Emergency Generator Set,power generating sets |
||
300kva Perkins Open Three Phase Perkins Generator Set With Stamford Alternator
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Diesel Generator GPP240 (three phase)
|
Prime Power (kw/kva) |
240/300 |
|
Standby Power (kw/kva) |
264/330 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
433 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
24V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
3200*1150*1900 |
|
Open Type-Weight (kg) |
2735 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
4100*1500*2250 |
|
Soundproof Type-Weight (kg) |
6385 |
|
Fuel Tank Capacity(L) |
600 |
|
Continuous Running Time(hr.) |
8 |
Engine specifications:
1.Main features:
2.Technical data
Model 1606A-E93TAG5
|
Engine brand |
Perkins |
|
Output Power (kw) |
287 |
|
Cylinder No. & Config. |
6, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
|
|
Displacement (L) |
9.3 |
|
Bore X Stroke (mm) |
117*146 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
45 |
|
Fuel Consump. (g/kw·h) |
208 |
|
Oil Capacity (L) |
36 |

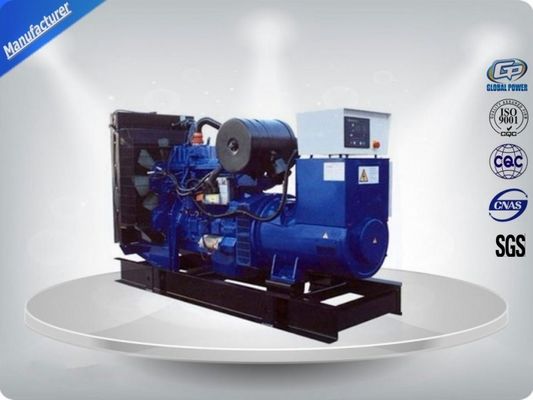

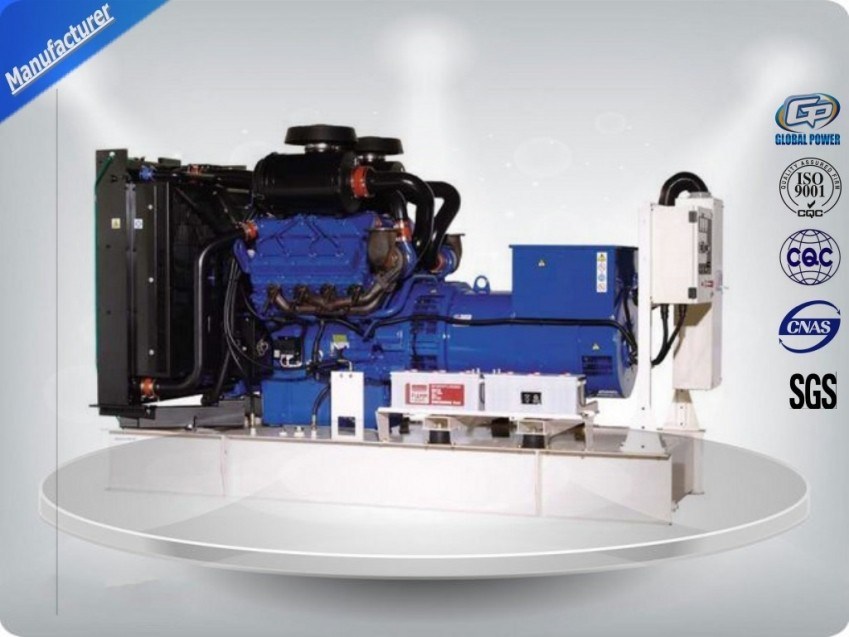

Product Picture:
Features and benefits
