उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सर्वोच्च शक्ति: | 120 किलोवाट | रेटेड आवृत्ति: | 50 हर्ट्ज |
|---|---|---|---|
| इंजन ब्रांड: | पर्किन्स | वर्तमान मूल्यांकित: | 216 |
| अल्टरनेटर ब्रांड: | स्टैमफोर्ड | ओपन टाइप-वेट: | 1465 कि.ग्रा |
| बैटरी की क्षमता: | 12 वी 100 एएच | लगातार चलने का समय: | 8 घंटा. |
| प्रमुखता देना: | marine diesel genset,power generating sets |
||

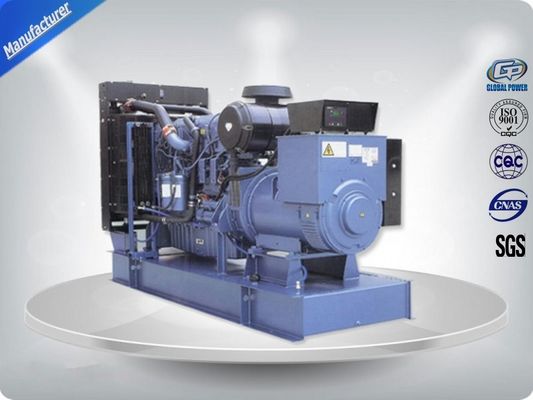

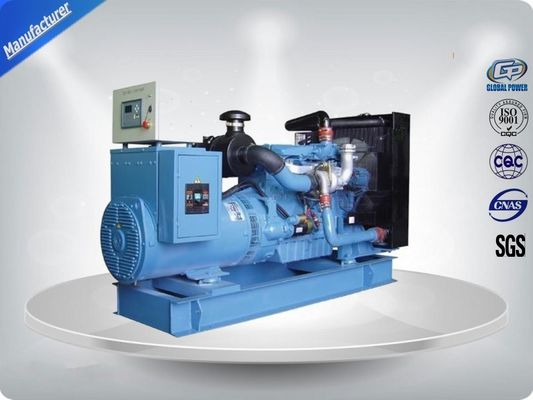

150Kva 3 Phase Diesel Generator Set With Perkins Engine Stamford Alternator
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Model 1106A-70TAG2
| Engine brand | Perkins |
| Output Power (kw) | 172 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16:1 |
| Displacement (L) | 7 |
| Bore X Stroke (mm) | 105*135 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 21 |
| Fuel Consump. (g/kw·h) | 222 |
| Oil Capacity (L) | 16.5 |
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Technical Specifications:
| Prime Power (kw/kva) | 120/150 |
| Standby Power (kw/kva) | 132/165 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 216 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2377*780*1350 |
| Open Type-Weight (kg) | 1465 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
| Soundproof Type-Weight (kg) | 3865 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
