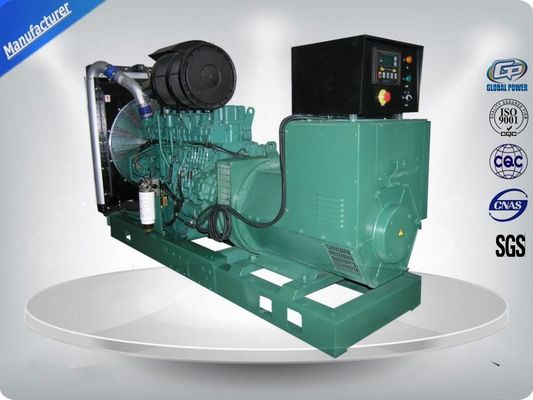

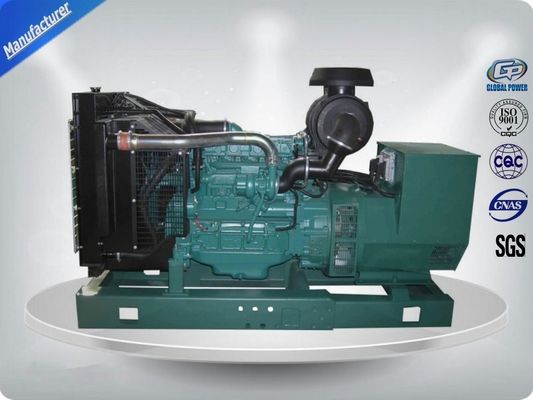

150kW / 188kVA Diesel Engine Generator Set With Volvo Engine Stamford Alternator ISO9001

बड़ी छवि : 150kW / 188kVA Diesel Engine Generator Set With Volvo Engine Stamford Alternator ISO9001

उत्पाद विवरण:

उत्पत्ति के प्लेस:	जियांग्सू, चीन
ब्रांड नाम:	Global Power
प्रमाणन:	OEM/ISO9001
मॉडल संख्या:	जीपीवी150

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	negotiable
पैकेजिंग विवरण:	प्लास्टिक फोम या प्लाईवुड केस पैकिंग
प्रसव के समय:	डाउन-पेमेंट प्राप्त करने के 25 कार्य दिवस बाद
भुगतान शर्तें:	एल/सी, एल/सी
आपूर्ति की क्षमता:	2,000 सेट/वर्ष

संपर्क करें

विस्तृत उत्पाद विवरण

सर्वोच्च शक्ति:	150kW	इंजन ब्रांड:	वोल्वो
अल्टरनेटर ब्रांड:	स्टैमफोर्ड	वर्तमान मूल्यांकित:	270ए
बैटरी की क्षमता:	12 वी 100 एएच	ईंधन टैंक क्षमता:	320एल
वज़न:	1590 किग्रा	विस्थापन:	7.15L
प्रमुखता देना:	marine diesel genset , power generating sets

150kW/188kVA Diesel Engine Generator Set With Volvo Engine Stamford Alternator

Features and benefits:

Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)Tightly structure, excellent design and craft
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door.
Transient state voltage regulation rate:+20%~-15%Un
The generator excellent Features:
Voltage regulation range:(95%Un ~105%)Un
Steady- state Voltage regulation: ≤±1%
No-load line voltage sine waveform distortion: ≤5%
Thermal deviation is zero(ANU).
Controller features:
Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Technical Specifications :
Genset:

Prime Power (kw/kva)	150/188
Standby Power (kw/kva)	165/207
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	271
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	256010051594
Open Type-Weight (kg)	1590
Soundproof Type- Dimension (LWH) (mm)	360016002000
Soundproof Type-Weight (kg)	4490
Fuel Tank Capacity(L)	320
Continuous Running Time(hr.)	8

Engine:
Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Model 2506C-E15TAG2

Output Power (kw)	162
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	18:1
Displacement (L)	7.15
Bore X Stroke (mm)	108*130
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	37.1
Fuel Consump. (g/kw·h)	213
Oil Capacity (L)	34

Alternator:
Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Model HCI544C

Rated Power (kw)	144
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%
