उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| इंजन मॉडल: | कमिंस kta50-gs8 | रेटेड वोल्टेज: | 400V/230V |
|---|---|---|---|
| सर्वोच्च शक्ति: | 1500KVA/1200KW | अल्टरनेटर मॉडल: | स्टैनफोर्ड PI734C |
| नियंत्रण प्रणाली: | आईएल-एनटी-एएमएफ25 | खुले प्रकार का आकार (एमएम): | 4450*1650*2400 |
| वजन(किलो): | 10900 | ||
| प्रमुखता देना: | industrial diesel generators,Industrial Genset |
||
High Power 1500 KVA 1200 KW Industrial Diesel Generator With Cummins Engine Low Fuel Consumption
Model: GPC1200
Applications:
Global Power series products will be widely used for real estate, building, hotel, hospital, factory, railway, road, airport, sea port, bank, data center, telecom communication, mining plant, power plant, national grid, engineering etc.
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Diesel Generator GPC1200 (three phase)
Prime Power (kw/kva): 1200/1500
Standby Power (kw/kva): 1320/1650
Rated Voltage (V): 400/230
Voltage Recovery Time: ≤1S
Rated Current (A): 2161
Rated Frequency (Hz): 50
Frequency Recovery Time: ≤5S
Wave Distortion: ≤5%, sine wave
Running Noise db(A)/7m(Silent type): 75
Battery capacity (V-Ah): 12V 100Ah
Open Type-Dimension (L*W*H) (mm): 4450*1650*2400
Open Type-Weight (kg): 10900
Continuous Running Time(hr.): 6
Engine specifications
Technical data
Model KTA50-GS8
Engine brand: Cummins
Output Power (kw): 1287
Cylinder No. & Config.: 16,in “V”
Combustion System: direct injection
Compression Ratio: 14.9:1
Displacement (L): 50.1
Bore X Stroke (mm): 159*159
Engine Speed (r/min): 1500
Speed Governing: Electronic
Starting System: 24V DC Electric
Filter System: Dry oil filter/Fuel filter/Oil filter
Cooling system: Water-cooled
Coolant capacity (L): 194
Fuel Consump. (g/kw·h): 204
Oil Capacity (L): 204
Engine
Main Features:
1. Twelve-cylinder, water-cooled, in “V” diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Alternator Specifications
Technical data
Model HCI634H
Alternator brand: Stamford
Rated Power (kw): 1240
Excitation System: Brushless, self-exciting
Voltage Regulation Mode: AVR
Connection Type: 3phase,4wires,”Y” connection
Pole No.: 4
Rotation Speed (r/min): 1500
Temperature Rise (℃): 125
Insulation class: H
Voltage Regulation (0 load): ≥95%～105%
Voltage accuracy: ≤±1%
Protection Grade: IP23
Telephone Influence Factor: TIF＜50
Harmonic Coefficient: THF＜2%

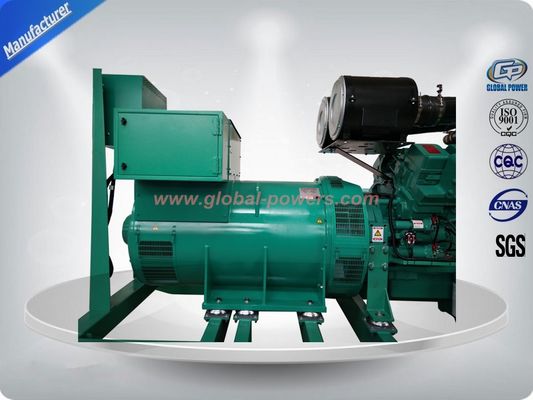

Alternator
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid

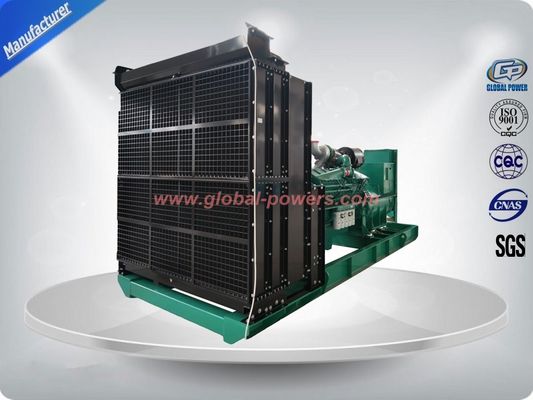

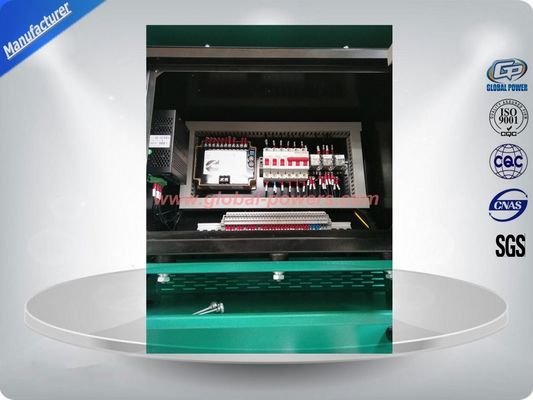

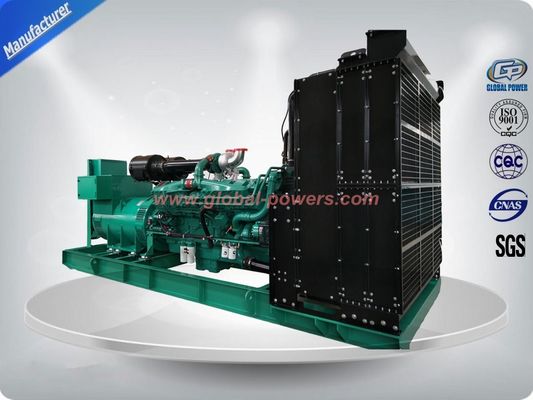

Product Display
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
